Certificate Deployment Monitoring¶

Monitoring Module Cert

Certificate Deployment Monitoring scans your TLS endpoints directly and reports on the certificate currently being served. Unlike CT-Log monitoring — which watches for certificates being issued — this module verifies what is actually deployed on your servers: expiry, protocol versions, cipher suites, and chain validity.

How it works¶

You create a certificate monitor for a hostname (Common Name).
You attach one or more IP targets — the server addresses to scan for that hostname.
NOB.center connects to each target over TLS on the configured port, performs a full handshake, and records the certificate chain, protocols, and ciphers accepted by the server.
Your alert rules evaluate each scan result and dispatch notifications if conditions are met.
A scan history is stored for every target so you can track how the certificate evolves over time.

Certificate monitors¶

A monitor represents the hostname (CN) you expect to find on the certificate. One monitor can have multiple IP targets — for example, all servers behind a load balancer, or both IPv4 and IPv6 addresses.

Creating a monitor¶

Navigate to Certificate Deployment and click Add Monitor. Fill in:

Field	Description
Common Name (CN)	The hostname the certificate should be issued for (e.g. `app.example.com`)
Port	TCP port to connect to (default `443`)
Target DNS	Optional DNS name to resolve for the target (overrides IP-based scanning for SNI)
Notes	Free-text label
Root CA	Optional PEM-encoded root certificate to use for chain validation

Custom root CA for self-signed certificates¶

By default NOB.center validates the certificate chain against the system trust store. If your server presents a self-signed certificate or a certificate signed by a private CA (common in internal infrastructure, staging environments, or IoT devices), chain validation would fail and every scan would report an error.

To monitor these endpoints, paste the PEM-encoded root CA certificate into the Root CA field when creating or editing the monitor. NOB.center will use it as the trust anchor for chain validation, allowing the scan to complete successfully and report on expiry, protocols, and ciphers as normal.

Note

Providing a custom root CA does not suppress the self_signed detection in alert rules — certificate.subject == certificate.issuer still evaluates correctly. It only tells the scanner to trust that root when building the chain.

After creating the monitor, add one or more IP targets.

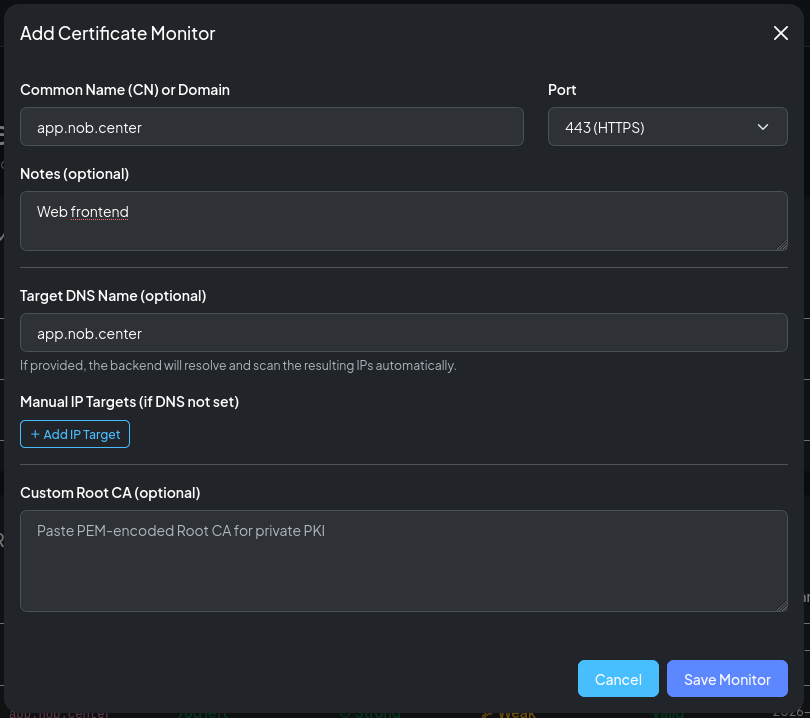

The Add Monitor modal

IP targets¶

Each IP target is an IP address that will be scanned for the monitor's CN. The scanner connects to <ip>:<port>, sends the CN as the TLS SNI extension, and inspects the certificate returned.

You can add multiple targets to cover: - All nodes in a cluster - IPv4 and IPv6 addresses - Primary and backup servers


Monitor detail page showing IP targets and latest scan results

Scan results¶

Each scan records:

Field	Description
IP address	The target that was scanned
Certificate subject	The Common Name of the leaf certificate
Issuer	The CA that issued the certificate
Valid from / until	Certificate validity period
Days remaining	Days until the certificate expires
TLS protocols accepted	All TLS versions the server accepted
Cipher suites	Full list of TLS cipher suites offered
Named groups	Elliptic curve / DH groups advertised
Chain length	Number of certificates in the chain
Connection method	`direct_tls` (port 443/8443) or `starttls` (mail servers)
Scan status	Success or error


Scan history for a monitor, showing one result per target per check cycle

Security framework analysis¶

The scan detail view shows a Framework Analysis panel. NOB.center evaluates the observed TLS configuration against several industry standards and flags compliance gaps:

Framework	Checks
FIPS 140-3	Approved cipher suites and key exchange algorithms
NIST SP 800-52	TLS version requirements and cipher recommendations
PCI-DSS v4	Prohibition of TLS 1.0 and weak ciphers
Mozilla Intermediate	Mozilla's recommended compatible TLS profile
Mozilla Modern	Mozilla's stricter TLS 1.3-only profile

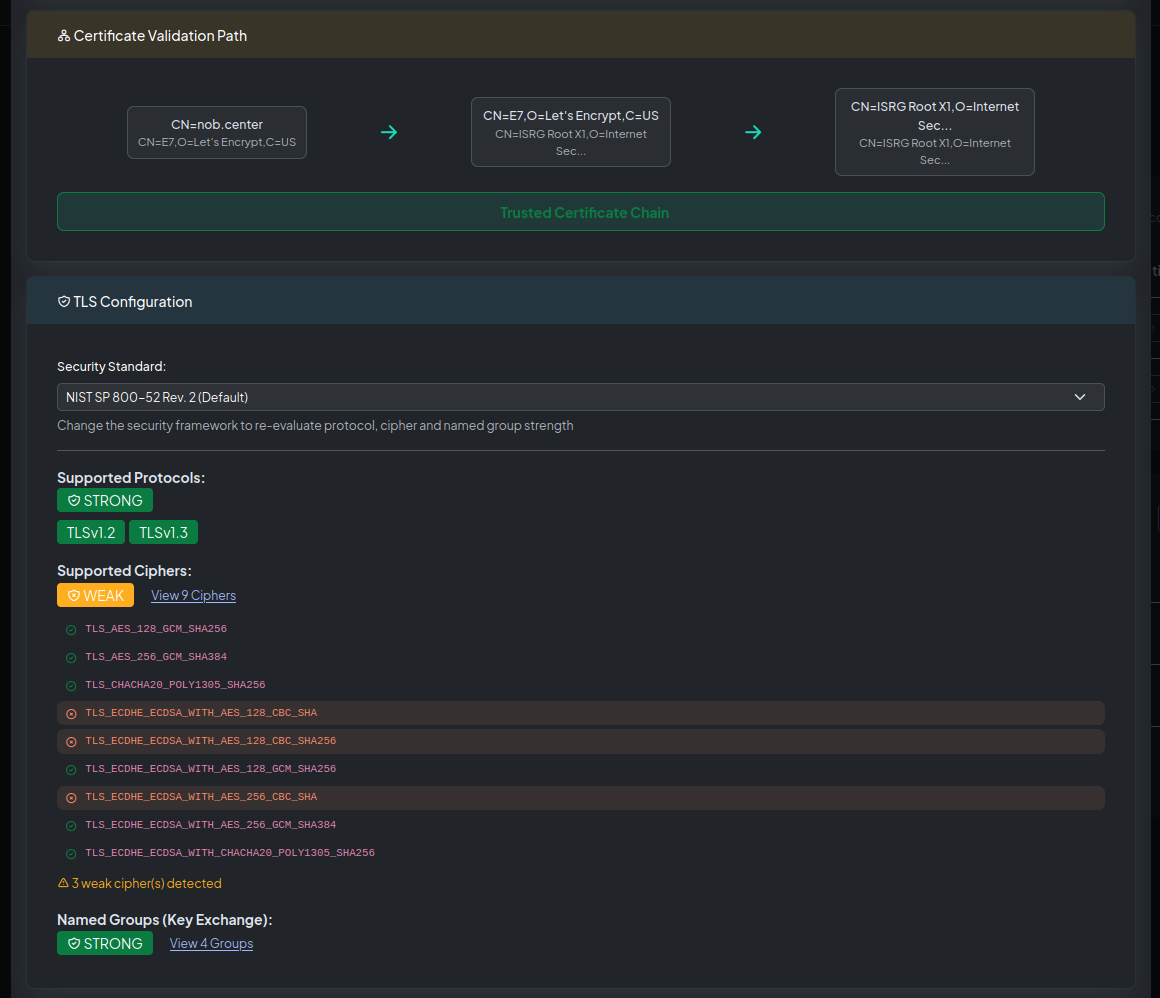

Security framework analysis panel in the scan detail view

Alert rules¶

Navigate to Certificate Deployment → Alert Rules to create and manage rules for this module.

CEL context object¶

Each scan result exposes the following fields to your CEL conditions:

{
  "monitor_cn": "app.example.com",
  "dns_name": "app.example.com",
  "ip_address": "93.184.216.34",
  "connection_method": "direct_tls",
  "protocol": ["TLSv1.2", "TLSv1.3"],
  "ciphers": [
    "TLS_AES_256_GCM_SHA384",
    "TLS_CHACHA20_POLY1305_SHA256",
    "TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384"
  ],
  "named_groups": ["X25519", "P-256"],
  "certificate": {
    "sha256": "a1b2c3d4e5f6...",
    "subject": "CN=app.example.com",
    "issuer": "CN=R10, O=Let's Encrypt, C=US",
    "dns_names": ["app.example.com", "www.example.com"],
    "not_before": "2026-01-01T00:00:00Z",
    "not_after": "2026-04-01T00:00:00Z",
    "serial": "12345678901234567890",
    "signature_algorithm": "SHA256-RSA",
    "public_key_algorithm": "RSA",
    "aia": "http://r10.i.lencr.org/",
    "ocsp": "http://r10.o.lencr.org/"
  },
  "validity_days": 75,
  "intermediates": [
    {
      "subject": "CN=R10, O=Let's Encrypt, C=US",
      "issuer": "CN=ISRG Root X1, O=Internet Security Research Group, C=US",
      "not_before": "2023-03-17T16:00:00Z",
      "not_after": "2027-03-13T23:59:59Z",
      "signature_sha256": "b2c3d4..."
    }
  ],
  "validation_path": [
    { "certificate_subject": "CN=app.example.com", "certificate_issuer": "CN=R10, O=Let's Encrypt, C=US" },
    { "certificate_subject": "CN=R10, O=Let's Encrypt, C=US", "certificate_issuer": "CN=ISRG Root X1, ..." }
  ],
  "has_error": false,
  "error": ""
}

Top-level fields¶

Field	Type	Description
`monitor_cn`	string	Common Name configured for the monitor
`dns_name`	string	DNS hostname used for SNI (may be empty for IP-only monitors)
`ip_address`	string	IP address that was scanned
`connection_method`	string	`direct_tls` or `starttls`
`protocol`	list	TLS versions accepted by the server
`ciphers`	list	TLS cipher suites offered (IANA names)
`named_groups`	list	Elliptic curve / DH groups advertised
`certificate`	object	Leaf certificate details
`validity_days`	int	Days until the certificate expires; negative if already expired
`intermediates`	list	Intermediate certificates in the chain
`validation_path`	list	Certificate chain from leaf to trust anchor
`has_error`	bool	`true` if the scan failed entirely
`error`	string	Error message; empty on success

`certificate` fields¶

Field	Type	Description
`sha256`	string	SHA-256 fingerprint of the leaf certificate
`subject`	string	Subject distinguished name
`issuer`	string	Issuer distinguished name
`dns_names`	list	Subject Alternative Names (SANs)
`not_before`	string	Validity start (RFC 3339)
`not_after`	string	Expiry date (RFC 3339)
`serial`	string	Serial number
`signature_algorithm`	string	e.g. `SHA256-RSA`, `ECDSA-SHA384`
`public_key_algorithm`	string	`RSA` or `ECDSA`
`aia`	string	CA Issuers URL from AIA extension
`ocsp`	string	OCSP responder URL

`intermediates` fields¶

Field	Type	Description
`subject`	string	Subject DN of the intermediate
`issuer`	string	Issuer DN of the intermediate
`not_before`	string	RFC 3339 validity start
`not_after`	string	RFC 3339 validity end
`signature_sha256`	string	SHA-256 fingerprint

Example rules¶

Certificate expiring within 30 days:

!has_error && validity_days < 30

Certificate already expired:

!has_error && validity_days < 0

Scan failed (connection refused, TLS error):

has_error

TLS 1.0 or 1.1 accepted (deprecated):

!has_error && protocol.exists(p, p == "TLSv1" || p == "TLSv1.1")

TLS 1.3 not supported:

!has_error && !protocol.exists(p, p == "TLSv1.3")

Weak cipher suite offered (RC4, DES, 3DES, NULL):

!has_error && ciphers.exists(c, c.contains("RC4") || c.contains("_DES_") || c.contains("3DES") || c.contains("NULL"))

No forward secrecy:

!has_error && !ciphers.exists(c, c.contains("DHE") || c.contains("ECDHE"))

Self-signed certificate:

!has_error && certificate.subject == certificate.issuer

Wildcard certificate:

!has_error && certificate.dns_names.exists(d, d.startsWith("*."))

SHA-1 signature (deprecated):

!has_error && certificate.signature_algorithm.contains("SHA1")

Missing OCSP responder:

!has_error && certificate.ocsp == ""

Incomplete chain (no intermediates):

!has_error && intermediates.size() == 0

CN mismatch (certificate not valid for the monitored hostname):

!has_error && !certificate.dns_names.exists(d, d == monitor_cn)

API reference¶

All Certificate Deployment endpoints require authentication. See Authentication.

`GET /api/cert-watcher/monitors`¶

List your organization's certificate monitors.

Permission: view_certificates

Query parameters: page (int, default 1), page_size (int, default 20)

Response:

{
  "monitors": [
    {
      "id": 1,
      "cn": "app.example.com",
      "enabled": true,
      "port": 443,
      "target_dns": null,
      "notes": "Production API",
      "created_at": "2026-01-01T00:00:00Z",
      "latest_scan": {
        "scanned_at": "2026-01-15T10:00:00Z",
        "validity_days": 75,
        "has_error": false
      }
    }
  ],
  "total": 1,
  "page": 1,
  "page_size": 20
}

`GET /api/cert-watcher/monitors/{monitor_id}`¶

Get details for a single monitor, including its IP targets.

Permission: view_certificates

`POST /api/cert-watcher/monitors`¶

Create a new certificate monitor.

Permission: create_certificates

Body:

Field	Type	Required	Description
`cn`	string	Yes	Common Name (hostname)
`port`	int	No	Default `443`
`target_dns`	string	No	Override DNS name for SNI
`enabled`	bool	No	Default `true`
`notes`	string	No	—
`root_ca`	string	No	PEM-encoded root certificate
`ip_addresses`	list	No	Initial list of IP targets to add

Response: {"id": 1, "message": "Monitor created", "quota_remaining": 9}

`PUT /api/cert-watcher/monitors/{monitor_id}`¶

Replace all settings of an existing monitor.

Permission: update_certificates

Response: {"message": "Monitor updated"}

`PATCH /api/cert-watcher/monitors/{monitor_id}`¶

Toggle enabled/disabled state.

Permission: update_certificates

Body: {"enabled": false}

Response: {"message": "Monitor updated"}

`DELETE /api/cert-watcher/monitors/{monitor_id}`¶

Delete a certificate monitor and all its targets.

Permission: delete_certificates

Response: {"message": "Monitor deleted"}

`GET /api/cert-watcher/history/{monitor_id}`¶

Get scan history for a monitor, with framework-based strength analysis per result.

Permission: view_history

Query parameters: page (int, default 1), page_size (int, default 20)

Response: List of scan result objects, each including protocol/cipher data and framework compliance flags.

`GET /api/cert-watcher/security-standards`¶

Return the full definitions of the supported security standards (FIPS, NIST, PCI-DSS, Mozilla).

Permission: module access (any role)

`GET /api/cert-watcher/ct-log-list`¶

Return the current list of known CT logs (sourced from Google's public log list, cached 24 hours). Useful for cross-referencing SCTs.

Permission: module access (any role)

`GET /api/cert-watcher/introspection`¶

Returns the CEL variable schema for this module, used by the rule editor's Available fields dropdown.

Permission: module access (any role)
