DNS Monitoring¶

Monitoring Module DNS

DNS Monitoring watches specified DNS records for your domains and alerts you whenever they change. You choose exactly which records to track — A, MX, NS, TXT, and more — and NOB.center notifies you whenever any value, TTL, or DNSSEC status changes.

How it works¶

You add a domain to DNS monitoring and select which DNS records to watch.
NOB.center checks those records on a regular schedule.
When the current values differ from the last known snapshot, a change event is generated.
Your alert rules evaluate each change and dispatch notifications if conditions are met.
The full history of snapshots and diffs is available for review at any time.

Adding a domain¶

Navigate to DNS Monitoring and click Add Domain. Enter the domain name and choose whether to enable Auto-discover.

Auto-discover¶

When auto-discover is enabled, NOB.center probes the domain for common DNS record types on the first check and suggests a set of records to monitor. You can review the suggestions and accept or discard each one individually.

Auto-discover probes for: A, AAAA, MX, NS, TXT, CAA, SOA, CNAME, and common subdomains (www, mail, smtp, ftp, etc.).

As long as auto-discovery is enabled NOB.center will probe for these records daily and add as needed.

Domain settings¶

Field	Description
Domain name	The fully-qualified domain to monitor (e.g. `example.com`)
Auto-discover	Whether to propose records automatically on first check
Enabled	Toggle to pause monitoring without deleting configuration
Notes	Free-text label visible in the domain list

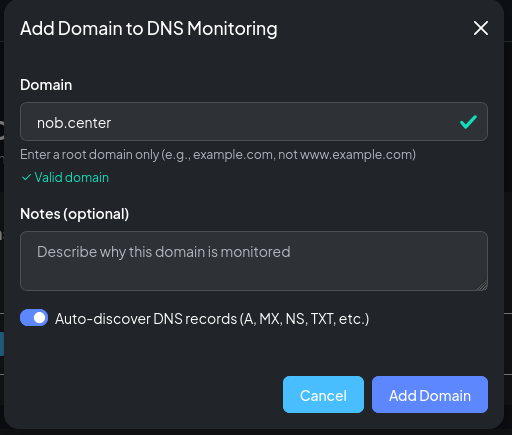

The Add Domain modal

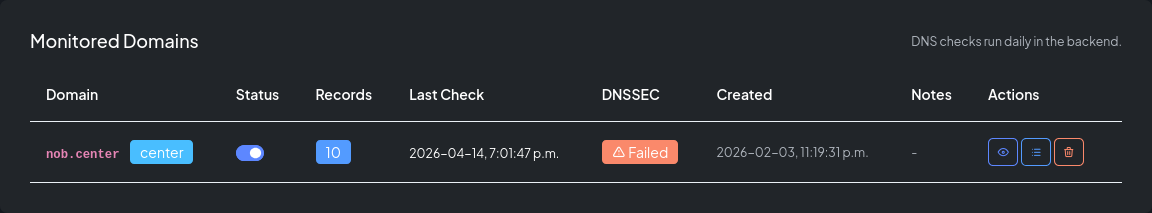

The DNS Monitoring domain list with status indicators

Managing DNS records¶

Open a domain to see its Records tab. Each row shows the record name, type, whether it is currently enabled, and how it was added (automatically or manually).

Record types¶

NOB.center monitors these DNS record types:

A · AAAA · MX · NS · TXT · CNAME · CAA · SOA · SRV · PTR

Enabling and disabling records¶

Toggle any record on or off individually. A disabled record is paused — it stops consuming quota and no alerts fire for it, but its history is preserved. You can re-enable it at any time.

Adding records manually¶

Click Add Record, enter a record name and type, and confirm. The record will be queried on the next scheduled check.

Removing records¶

Delete a record to remove it from monitoring entirely. Its history is retained for 30 days.


The Records tab showing monitored records and their current enabled state

History and diffs¶

The History tab shows a timestamped list of snapshots taken for the domain. Click any two snapshots to see a side-by-side diff of what changed between them.

Each diff shows:

Column	Description
Record	The DNS record name and type
Action	`added`, `modified`, or `deleted`
Old values	Previous record value(s)
New values	New record value(s)
TTL change	Old TTL → New TTL (in seconds)
DNSSEC status	Validation state at the time of the snapshot

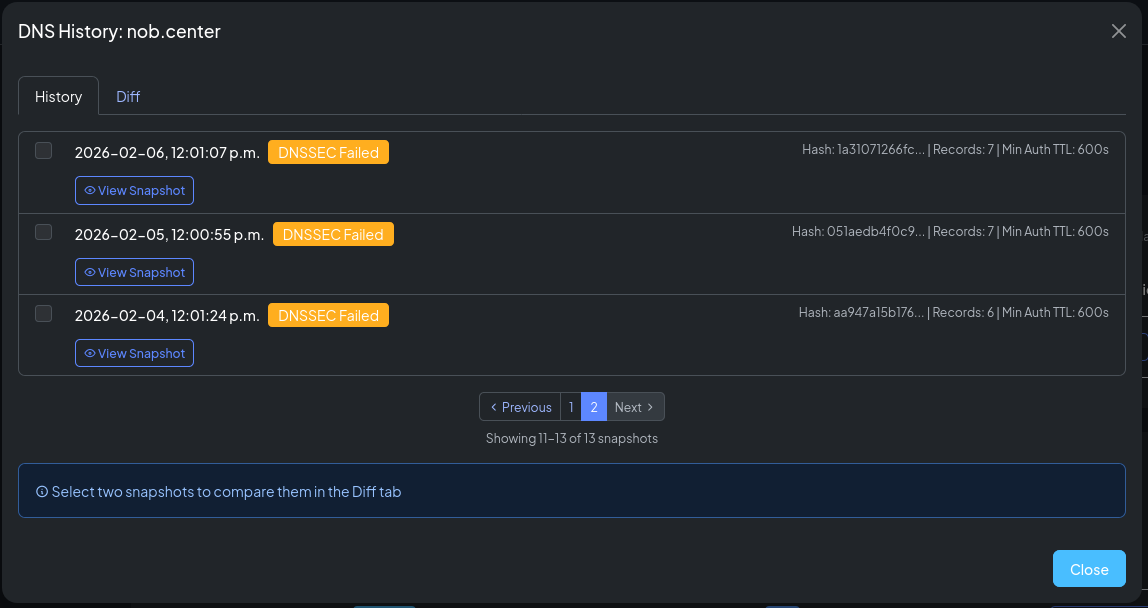

Snapshot history list for a domain

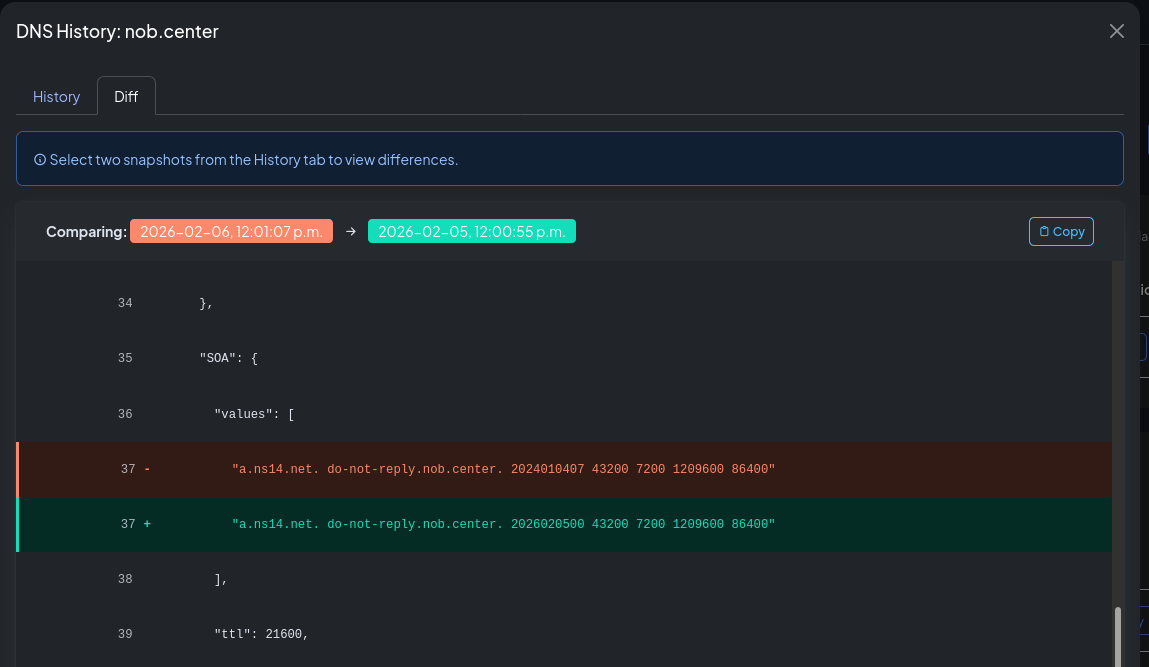

Side-by-side diff view between two snapshots

Alert rules¶

Navigate to DNS Monitoring → Alert Rules to create and manage rules for this module.

CEL context object¶

Each DNS change event exposes the following fields to your CEL conditions:

{
  "domain": "example.com",
  "tld": "com",
  "current": {
    "dns": {
      "example.com": {
        "@": {
          "A": { "values": ["93.184.216.34"], "ttl": 3600 },
          "NS": { "values": ["ns1.example.com", "ns2.example.com"], "ttl": 86400 },
          "MX": { "values": ["10 mail.example.com"], "ttl": 3600 }
        },
        "www": {
          "A": { "values": ["93.184.216.34"], "ttl": 3600 }
        }
      }
    }
  },
  "previous": {
    "dns": {
      "example.com": {
        "@": {
          "A": { "values": ["93.184.216.33"], "ttl": 3600 },
          "NS": { "values": ["ns1.example.com", "ns2.example.com"], "ttl": 86400 },
          "MX": { "values": ["10 mail.example.com"], "ttl": 3600 }
        }
      }
    }
  },
  "changed_records": [
    {
      "name": "@",
      "type": "A",
      "action": "modified",
      "old_values": ["93.184.216.33"],
      "new_values": ["93.184.216.34"],
      "old_ttl": 3600,
      "new_ttl": 3600,
      "dnssec_status": "validated"
    }
  ],
  "metadata": {
    "fetched_at": "2026-01-15T10:30:00Z",
    "nameserver": "8.8.8.8",
    "response_time_ms": 42,
    "query_status": "NOERROR",
    "record_count": 8,
    "dnssec_enabled": true,
    "dnssec_validated": true,
    "min_ttl": 300,
    "max_ttl": 86400
  }
}

Top-level fields¶

Field	Type	Description
`domain`	string	Domain being monitored
`tld`	string	Top-level domain (e.g. `com`, `org`)
`current`	object	Current DNS snapshot
`previous`	object	Previous DNS snapshot
`changed_records`	list	Records that changed in this event
`metadata`	object	Query metadata

`current` / `previous` structure¶

Both current.dns and previous.dns are maps keyed by domain name, then record name (@ for the apex), then record type. Each entry has values (list of strings) and ttl (int).

current.dns["example.com"]["@"]["A"].values.size()
current.dns["example.com"]["www"]["CNAME"].values[0]
previous.dns["example.com"]["@"]["NS"].values != current.dns["example.com"]["@"]["NS"].values

`changed_records` fields¶

Field	Type	Description
`name`	string	Record name (`@` for apex, `www` for www, etc.)
`type`	string	Record type: `A`, `AAAA`, `MX`, `NS`, `TXT`, `CNAME`, `CAA`, `SOA`, `SRV`, `PTR`
`action`	string	`added`, `modified`, or `deleted`
`old_values`	list	Previous record values
`new_values`	list	New record values
`old_ttl`	int	Previous TTL in seconds
`new_ttl`	int	New TTL in seconds
`dnssec_status`	string	`validated`, `failed`, or `unsigned`

`metadata` fields¶

Field	Type	Description
`fetched_at`	string	ISO 8601 timestamp when the check ran
`nameserver`	string	DNS resolver used for the query
`response_time_ms`	int	Query response time in milliseconds
`query_status`	string	DNS response code: `NOERROR`, `NXDOMAIN`, `SERVFAIL`, etc.
`record_count`	int	Total number of records in the snapshot
`dnssec_enabled`	bool	Whether DNSSEC is configured for the domain
`dnssec_validated`	bool	Whether DNSSEC validation passed
`min_ttl`	int	Lowest TTL across all records (seconds)
`max_ttl`	int	Highest TTL across all records (seconds)

Example rules¶

Any A record changed:

changed_records.exists(r, r.type == "A")

Nameserver changed:

changed_records.exists(r, r.type == "NS")

MX record added (new mail provider):

changed_records.exists(r, r.type == "MX" && r.action == "added")

SPF record modified:

changed_records.exists(r, r.type == "TXT" && r.old_values.exists(v, v.startsWith("v=spf1")) && r.new_values.exists(v, v.startsWith("v=spf1")))

CAA records removed (security concern):

changed_records.exists(r, r.type == "CAA" && r.action == "deleted")

Nameserver pointing to parking service:

changed_records.exists(r, r.type == "NS" && r.new_values.exists(ns, ns.contains("parking") || ns.contains("sedo")))

Multiple records changed simultaneously:

changed_records.size() >= 3

DNSSEC validation failed:

metadata.dnssec_enabled && !metadata.dnssec_validated

TTL dropped below 5 minutes:

changed_records.exists(r, r.new_ttl < 300 && r.new_ttl != r.old_ttl)

DNS query returned error:

metadata.query_status != "NOERROR"

API reference¶

All DNS Monitoring endpoints require authentication. See Authentication.

`GET /api/dns-watcher/domains`¶

List your organization's monitored domains.

Permission: view_domains

Query parameters: page (int, default 1), page_size (int, default 20)

Response:

{
  "domains": [
    {
      "id": 1,
      "domain_name": "example.com",
      "enabled": true,
      "auto_discover": true,
      "notes": "Primary domain",
      "last_checked_at": "2026-01-15T10:00:00Z",
      "last_check_status": "success",
      "created_at": "2026-01-01T00:00:00Z"
    }
  ],
  "total": 1,
  "page": 1,
  "page_size": 20
}

`POST /api/dns-watcher/domains`¶

Add a domain to DNS monitoring.

Permission: create_domains

Body:

Field	Type	Required	Description
`domain_name`	string	Yes	Fully-qualified domain name
`auto_discover`	bool	No	Default `true`
`enabled`	bool	No	Default `true`
`notes`	string	No	—

Response: {"id": 1, "message": "Domain added to monitoring", "quota_remaining": 9}

`PATCH /api/dns-watcher/domains/{monitor_id}`¶

Update domain monitor settings (notes, enabled state, auto-discover).

Permission: update_domains

Response: {"message": "Domain monitor updated"}

`DELETE /api/dns-watcher/domains/{monitor_id}`¶

Remove a domain from DNS monitoring.

Permission: delete_domains

Response: {"message": "Domain removed from monitoring"}

`GET /api/dns-watcher/domains/{domain_id}/records`¶

List all monitored DNS records for a domain.

Permission: view_records

Response:

{
  "records": [
    {
      "id": 10,
      "record_name": "@",
      "record_type": "A",
      "enabled": true,
      "discovered_by": "heuristic",
      "created_at": "2026-01-01T00:00:00Z"
    }
  ],
  "total": 5
}

`POST /api/dns-watcher/domains/{domain_id}/records`¶

Add a DNS record to monitor.

Permission: create_records

Body:

Field	Type	Required	Description
`record_name`	string	Yes	Record name, e.g. `@`, `www`, `mail`
`record_type`	string	Yes	One of: `A`, `AAAA`, `MX`, `NS`, `TXT`, `CNAME`, `CAA`, `SOA`, `SRV`, `PTR`

Response: {"id": 11, "record_name": "www", "record_type": "A", "message": "DNS record added to monitoring"}

`PATCH /api/dns-watcher/records/{record_id}`¶

Enable or disable a DNS record.

Permission: update_records

Body: {"enabled": false}

Response: {"message": "DNS record updated"}

`DELETE /api/dns-watcher/records/{record_id}`¶

Remove a DNS record from monitoring.

Permission: delete_records

Response: {"message": "DNS record removed from monitoring"}

`GET /api/dns-watcher/domains/{domain_name}/history`¶

Retrieve the snapshot history for a domain.

Permission: view_history

Query parameters: limit (int, default 30)

Response:

{
  "domain": "example.com",
  "snapshots": [
    {
      "id": "...",
      "timestamp": "2026-01-15T10:00:00Z",
      "changed": true,
      "change_summary": ["A record @ modified"]
    }
  ],
  "total": 12
}

`GET /api/dns-watcher/introspection`¶

Returns the CEL variable schema for this module, used by the rule editor's Available fields dropdown.

Permission: module access (any role)
