Certificate Transparency Monitoring

Monitoring Module CT Log

Every TLS certificate issued by a public certificate authority must be submitted to one or more Certificate Transparency logs — public, append-only registers that anyone can read. This system was designed to make unauthorized certificate issuance detectable by the domain owner.

NOB.center monitors these logs continuously and notifies you whenever a certificate appears that matches your domains.

---

How it works

1. You configure one or more domain filters — patterns like example.com or *.example.com — describing the domains you own or care about.
2. NOB.center watches all major public CT logs in real time.
3. When a new certificate is published containing a domain name that matches one of your filters, it appears in your CT-Log feed within minutes.
4. For each match, NOB.center also checks the domain's CAA records to determine whether the issuing CA was authorized.
5. Your alert rules evaluate each match and dispatch notifications if conditions are met.

---

Domain filters

Filters are the core configuration unit of this module. Each filter has:

• Pattern — the domain or hostname to watch
• Match type — wide or exact
• Enabled toggle
• Description (optional)
• Feed options — automatically route matched domain names into other modules

Wide vs. exact match

Match type	Pattern	Matches	Does not match
Wide	example.com	example.com, www.example.com, api.example.com	notexample.com
Exact	example.com	example.com only	www.example.com

Use wide for root domains you own. Use exact when you need to track a specific hostname without catching all subdomains.

Filter feeds

Each filter has two optional feed toggles:

• Feed into DNS Watcher — when a new subdomain appears in a matching certificate, it is automatically proposed as a DNS record to monitor
• Feed into Cert Watcher — newly-seen hostnames are automatically proposed for certificate deployment monitoring

Feeds are useful for maintaining coverage as your infrastructure grows — new subdomains discovered via CT logs flow into your other monitoring modules without manual intervention.

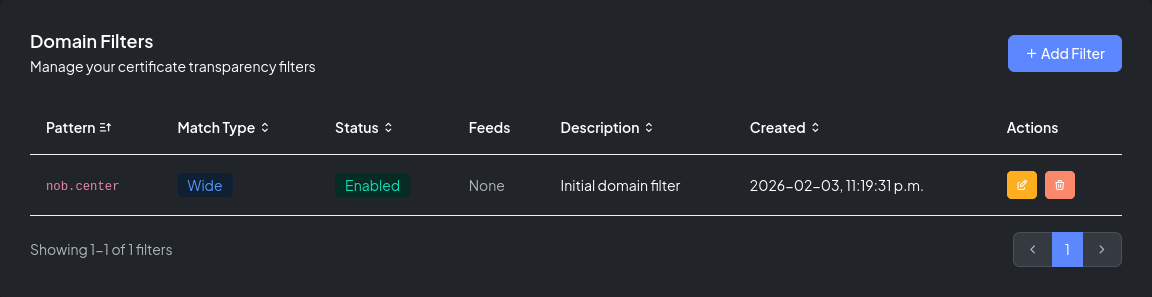

The Domain Filters table showing active filters with match types and feed settings


The Add Filter modal

---

Certificate matches

The Certificate Matches section shows all certificates observed in CT logs that matched at least one of your filters within the past 30 days.

Each row shows the primary domain name, how many CT logs the certificate appeared in, and the most recent match timestamp. Click any row to open the certificate detail view:

Field	Description
Subject	The certificate's Common Name
Issuer	The certificate authority that issued it
DNS names	All Subject Alternative Names (SANs)
SHA-256 fingerprint	Unique identifier for this certificate
Serial number	Serial as assigned by the CA
Valid from / until	Validity period
Signature algorithm	e.g. SHA256WithRSA, ECDSA
Key algorithm & size	e.g. RSA 2048, EC P-256
Precertificate	Whether this is a precert or the final certificate
CT log	Which log this entry came from
Log index	Position in the CT log
CA Issuer URLs	Links to the issuing CA's certificate
OCSP servers	Online Certificate Status Protocol endpoints
SCTs	Signed Certificate Timestamps embedded in the certificate

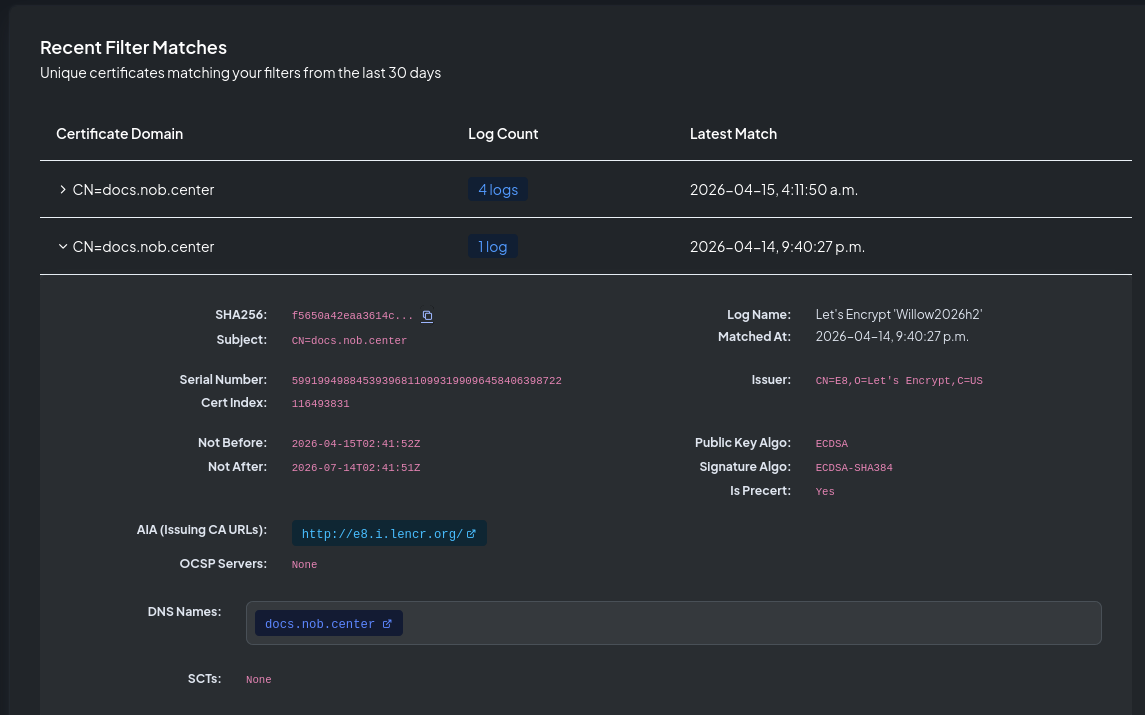

The Certificate Matches table

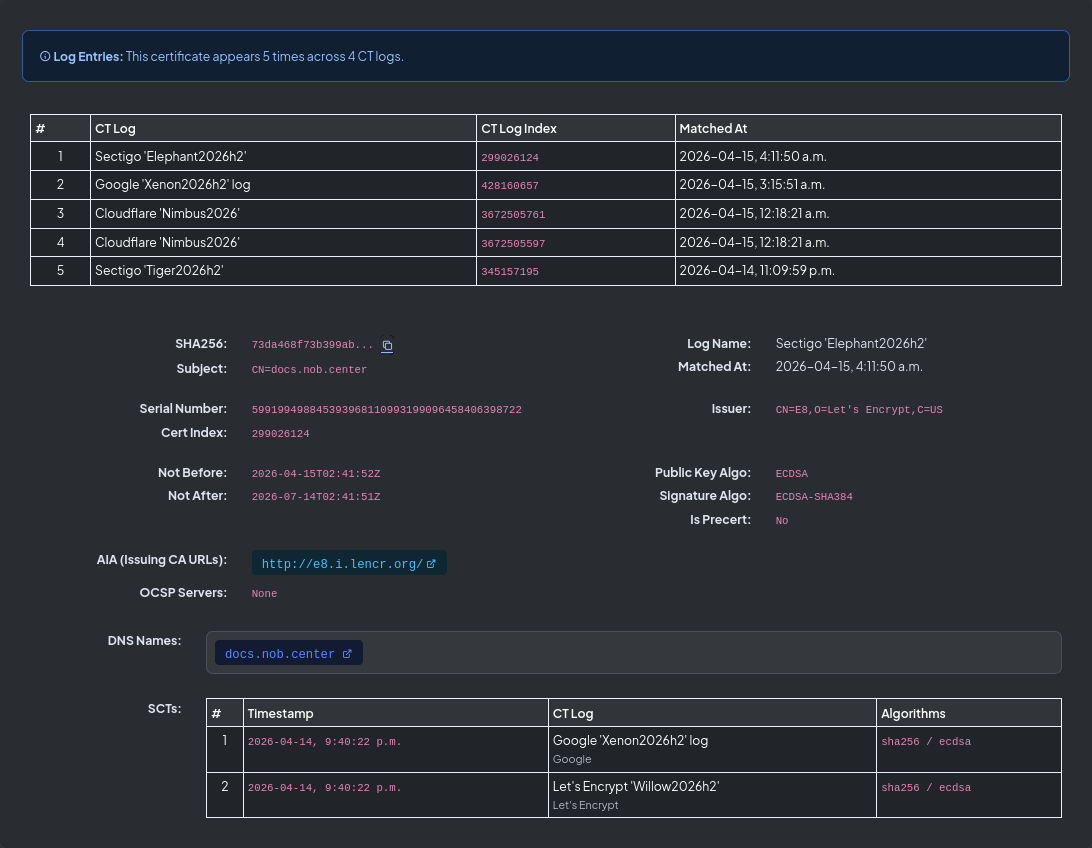

The certificate detail view

---

CAA checking

For every certificate match, NOB.center checks whether the issuing CA was authorized by the domain's CAA DNS records.

A CAA record (Certification Authority Authorization) is a DNS record that restricts which certificate authorities may issue certificates for a domain. For example:

example.com.  CAA  0 issue "letsencrypt.org"
example.com.  CAA  0 issue "digicert.com"

This record set permits only Let's Encrypt and DigiCert to issue certificates for example.com. Any certificate from another CA would be a CAA violation.

NOB.center reports in the CEL context:

• caa.has_records — whether any CAA records exist
• caa.authorized — whether the issuing CA is in those records
• caa.records — the actual CAA issuance values found
• caa.issuer_candidates — the CA names derived from the certificate's issuer field

A certificate where caa.has_records == true and caa.authorized == false indicates a potential policy violation.

Note

CAA is checked against the domain's current DNS at observation time. A violation could mean the CA ignored the record, or the record was added after the certificate was already issued. Always investigate the context before drawing conclusions.

---

Alert rules

Navigate to Certificate Transparency → Alert Rules to create and manage rules for this module.

CEL context object

Each CT-Log match exposes the following fields to your CEL conditions:

{
  "cert": {
    "subject": "CN=www.example.com",
    "issuer": "CN=R10, O=Let's Encrypt, C=US",
    "dns_names": ["www.example.com", "example.com"],
    "sha256": "a1b2c3d4e5f6...",
    "serial": "03:ab:cd:ef:01:23",
    "not_before": "2026-01-01T00:00:00Z",
    "not_after": "2026-04-01T00:00:00Z",
    "signature_algorithm": "SHA256WithRSA",
    "key_algorithm": "RSA",
    "key_size": 2048,
    "is_precert": false,
    "log_name": "Google 'Xenon2026h1'",
    "log_index": 123456789,
    "aia_issuing": ["https://r10.i.lencr.org/"],
    "ocsp_servers": ["http://r10.o.lencr.org/"],
    "scts": [
      {
        "log_id": "abc123...",
        "timestamp": "2026-01-01T00:00:00Z",
        "version": 1,
        "hash_algorithm": "SHA256",
        "signature_algorithm": "ECDSA"
      }
    ]
  },
  "caa": {
    "has_records": true,
    "authorized": true,
    "records": ["letsencrypt.org"],
    "error": "",
    "checked_names": ["example.com"],
    "issuer_candidates": ["letsencrypt.org"],
    "evaluated_at": "2026-01-15T10:30:00Z"
  },
  "rate": {
    "count": 3,
    "window": "1h",
    "precert_count": 2,
    "final_count": 1,
    "total_count": 4
  },
  "filter_id": 42,
  "matched_at": "2026-01-15T10:30:00Z"
}

cert fields

Field	Type	Description
subject	string	Certificate subject (Common Name)
issuer	string	Full issuer distinguished name
dns_names	list	All Subject Alternative Names
sha256	string	SHA-256 fingerprint
serial	string	Serial number
not_before	string	Validity start (ISO 8601)
not_after	string	Expiry (ISO 8601)
signature_algorithm	string	e.g. SHA256WithRSA
key_algorithm	string	e.g. RSA, EC
key_size	int	Key size in bits (RSA/DSA only)
is_precert	bool	true if this is a precertificate
log_name	string	CT log the entry came from
log_index	int	Position in the CT log
aia_issuing	list	CA Issuer URLs
ocsp_servers	list	OCSP responder URLs
scts	list	Signed Certificate Timestamps

caa fields

Field	Type	Description
has_records	bool	Whether any CAA records exist for the domain
authorized	bool	Whether the issuing CA is permitted by CAA
records	list	CAA issuance values found
error	string	Any error during CAA lookup; empty if none
checked_names	list	Domain names checked for CAA
issuer_candidates	list	CA names derived from the certificate issuer
evaluated_at	string	When the CAA check was performed

rate fields

Field	Type	Description
count	int	Certificates matching your filter in the current window
window	string	Time window, e.g. "1h"
precert_count	int	Precertificates seen in the window
final_count	int	Final certificates seen in the window
total_count	int	Combined count across all certificate types

Other fields

Field	Type	Description
filter_id	int	ID of the filter that matched this certificate
matched_at	string	When the match was observed

Example rules

Certificates from unexpected issuers:

!cert.issuer.contains("Let's Encrypt") && !cert.issuer.contains("DigiCert")

Wildcard certificates:

cert.dns_names.exists(n, n.startsWith("*."))

CAA authorization violation:

caa.has_records && !caa.authorized

Unusual issuance rate:

rate.count > 5

Many SANs (potential bulk issuance):

size(cert.dns_names) > 20

---

API reference

All CT-Log endpoints require authentication. See Authentication.

GET /api/ct-log/filters

List your organization's domain filters.

Permission: view_filters

Query parameters: page (int, default 1), page_size (int, default 10), sort_by (string), sort_order (asc/desc)

Response:

{
  "filters": [
    {
      "id": 1,
      "pattern": "example.com",
      "match_type": "wide",
      "enabled": true,
      "description": "Main domain",
      "feed_dns_enabled": true,
      "feed_certs_enabled": false,
      "created_at": "2026-01-01T00:00:00Z"
    }
  ],
  "total": 1,
  "page": 1,
  "page_size": 10
}

POST /api/ct-log/filters

Create a new filter.

Permission: create_filters

Body:

Field	Type	Required	Description
pattern	string	Yes	Domain pattern
match_type	string	Yes	wide or exact
enabled	bool	No	Default true
description	string	No	—
feed_dns_enabled	bool	No	Route to DNS Watcher
feed_certs_enabled	bool	No	Route to Cert Watcher

Response: {"id": 42, "message": "Filter created", "quota_remaining": 8}

PUT /api/ct-log/filters/{filter_id}

Update an existing filter. Accepts the same fields as the create endpoint (all optional).

Permission: update_filters

Response: {"message": "Filter updated"}

DELETE /api/ct-log/filters/{filter_id}

Delete a filter. The filter is soft-deleted and stops matching immediately.

Permission: delete_filters

Response: {"message": "Filter deleted"}

GET /api/ct-log/matches

List certificates matching your filters (past 30 days).

Permission: view_certificates

Query parameters: page (int, default 1), page_size (int, default 20)

GET /api/ct-log/matches/{sha256}

Get full detail for a specific certificate by SHA-256 fingerprint.

Permission: view_certificates

Query parameters: log_name (string, optional — filter to a specific CT log)

GET /api/ct-log/matches/check-new

Lightweight poll to check whether new matches have arrived since a given timestamp.

Permission: view_certificates

Query parameters: since (string, ISO 8601 timestamp)

Response: {"has_new": true, "count": 3, "latest_timestamp": "2026-01-15T11:00:00Z"}

GET /api/ct-log/introspection

Returns the CEL variable schema for this module, used by the rule editor's Available fields dropdown.

Permission: module access (any role)
